4.8 conrod & piston dimensions

Post by hugejp »

Does anyone know the measurments & dimensions of the 4.8 conrods & pistons?

Actually maybe a good idea to sticky a thread on all Patrol engine internals ie. A comparison chart & reference guide.

You CAN with a NISSAN!

Jy KAN met 'n DATSUN!

Patrolman 1000+
Patrolman 1000+
Posts: 2918
Joined: 23 Nov 2014 14:20
Full Name: Fanus
Nickname: Fanus
Home Town: Nelspruit
Current 4x4: ...
Home Language: Afrikaans/English
Has thanked: 105 times
Been thanked: 124 times

Re: 4.8 conrod & piston dimensions

Post by SJC »

Hope info is correct... :think:


Not sure about the pistons, but seems they are between 90.5 - 100.5mm (according to aftermarket/performance pistons advertised on the net)..

User avatar
Senior Member
Senior Member
Posts: 261
Joined: 08 Mar 2017 11:27
Full Name: Brent Harris
Nickname: Bre
Home Town: Bellville
Current 4x4: 1999 Nissan Patrol 4.5 GRX
2000 Nissan Terrano II 2.7 TDi Sport
2003 Nissan Hardbody 3.3 SEL DC 4x4
Home Language: English
Has thanked: 52 times
Been thanked: 33 times

Re: 4.8 conrod & piston dimensions

Post by Bre »

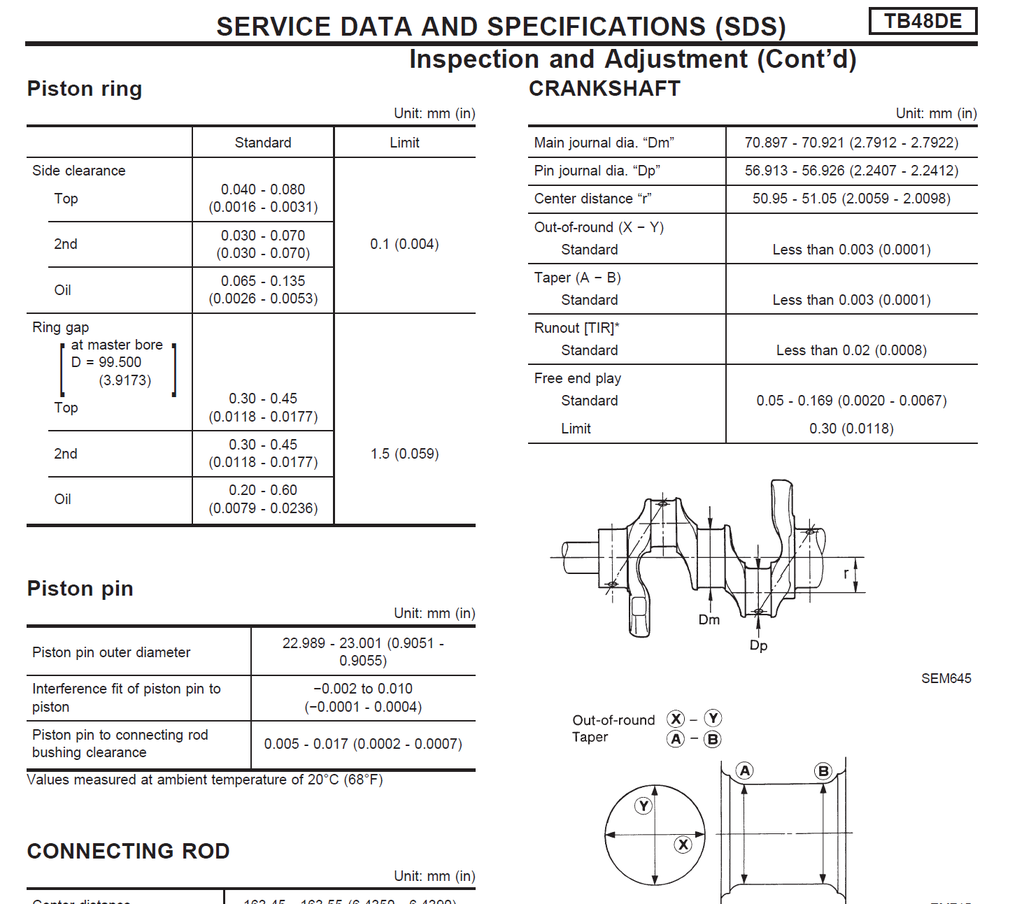

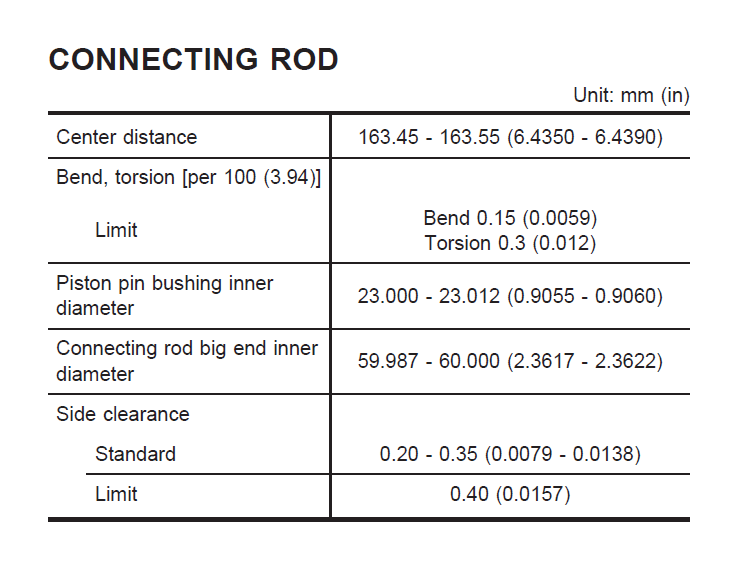

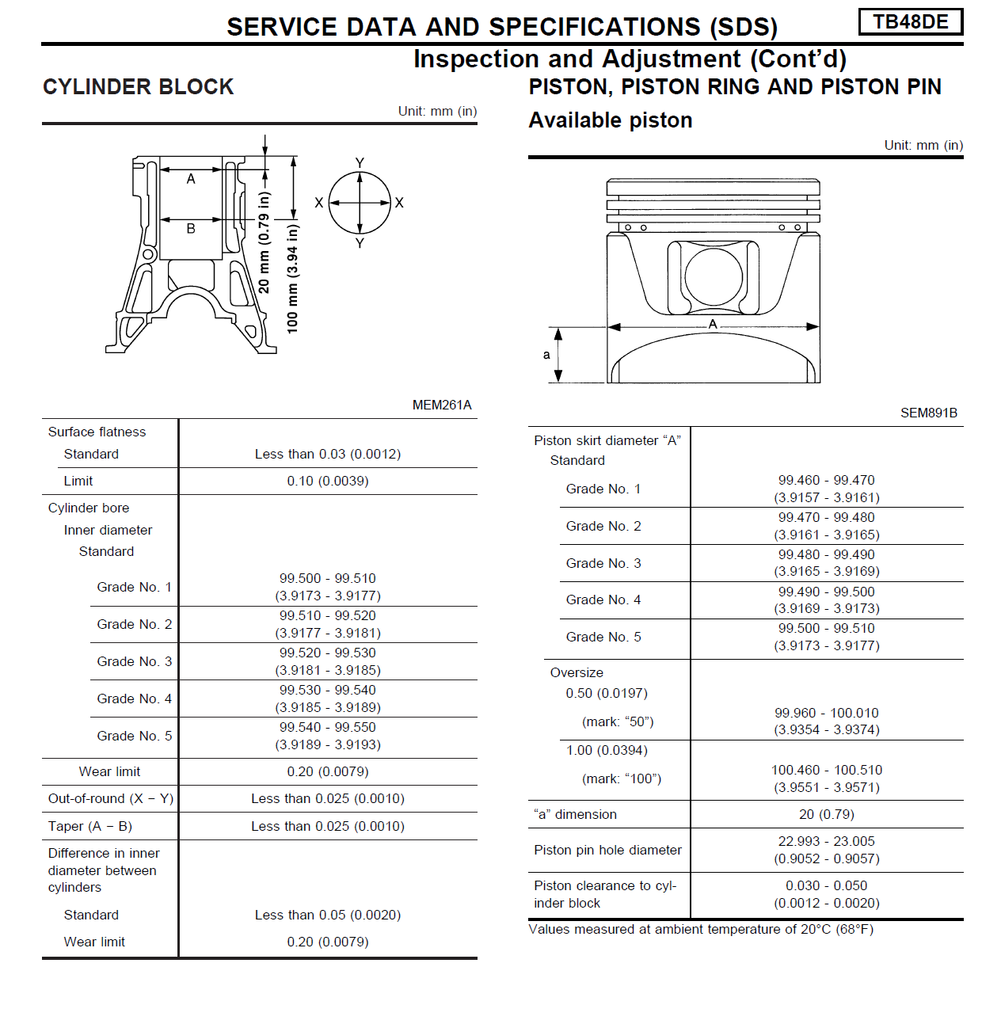

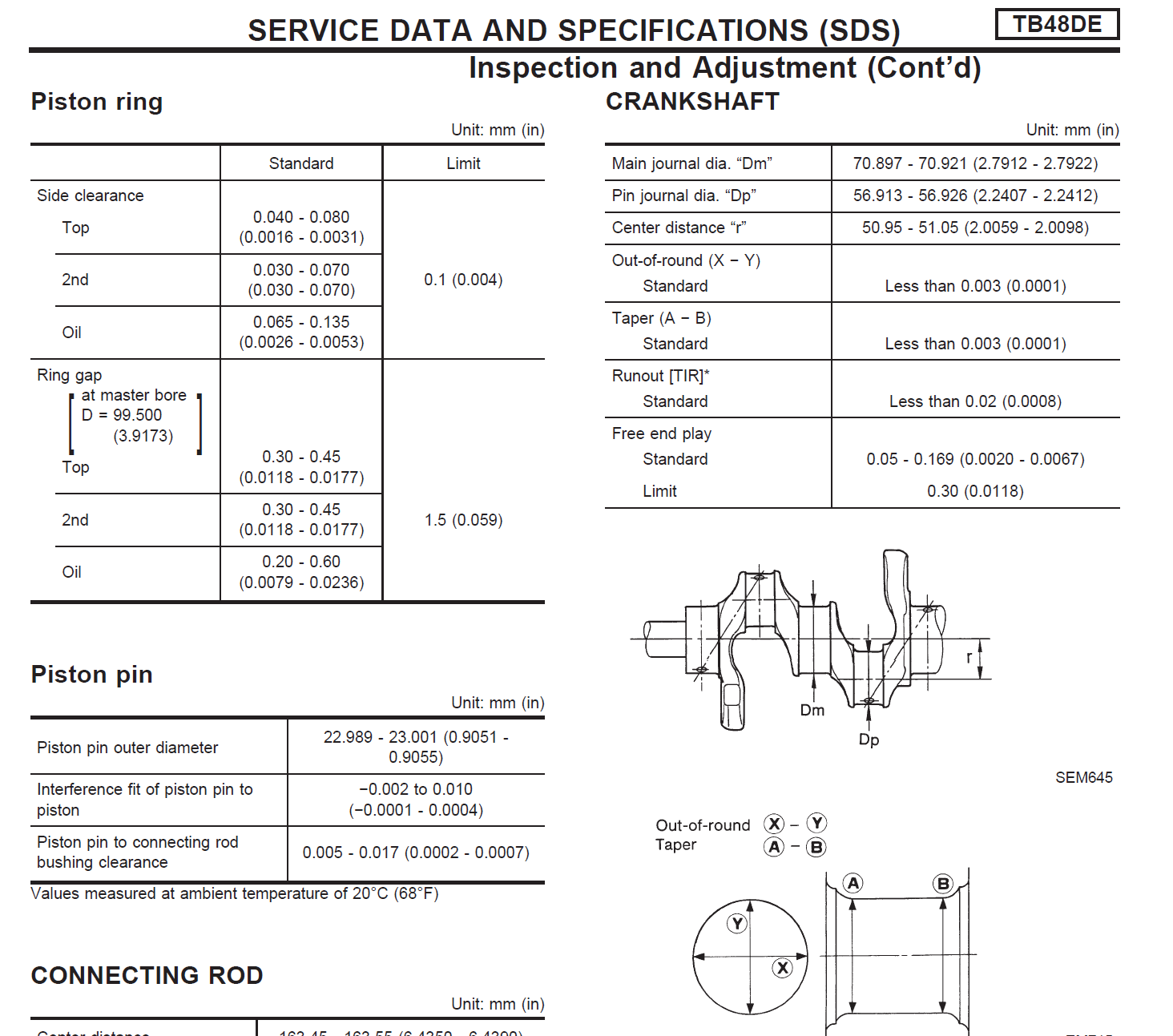

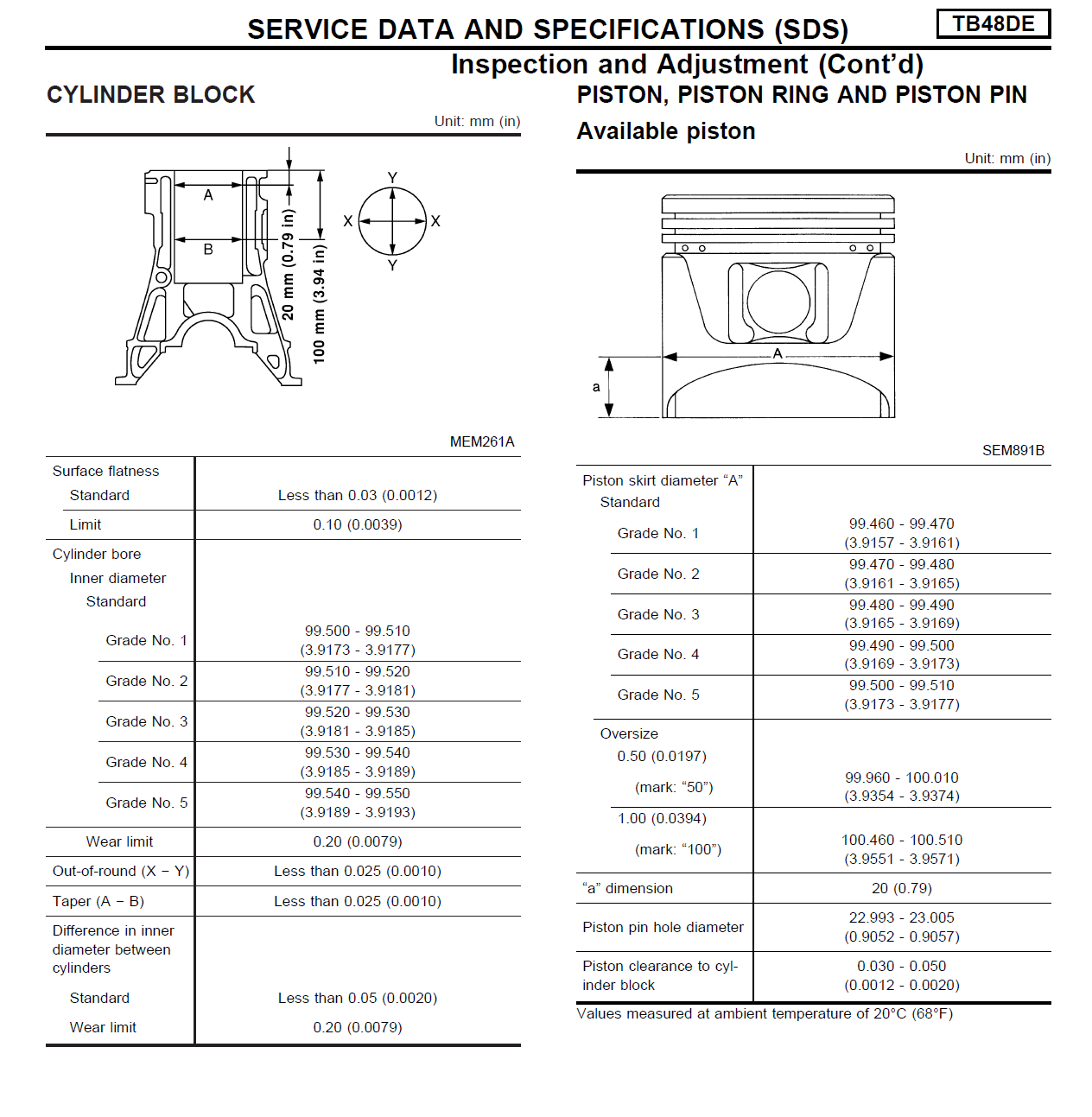

This is for the Euro-spec TB48DE from the Y61 ESM:
