Re: Dino day - Saturday 5 October

Post by Oetie »

Peter Connan wrote:
06 Oct 2019 22:05
I asked them to mail me all the results, but have not received them yet.

If I get them, i will post them.
I am not sure if relevant, and do not want to open a can of worms.... but should one not also keep tyre size and make in mind when comparing the results?
One life, live it to the fullest!!
ORRA - L65
HAM - ZS6LEF

Tlou - 2009 Patrol TD42T

PIG
Full Member
Full Member
Posts: 24
Joined: 25 Sep 2019 08:58
Full Name: Leon Burke
Nickname: Leon
Home Town: Pretoria
Current 4x4: 2015 Patrol pickup
Home Language: English
Has thanked: 6 times
Been thanked: 6 times

Re: Dino day - Saturday 5 October

Post by PIG »

Thanks for the day guys, enjoyed meeting everybody. Good luck with the rebuild Christo.

User avatar
Alex Roux
Patrolman 1000+
Patrolman 1000+
Posts: 2776
Joined: 11 Jul 2011 10:54
Full Name: Alexander Roux
Nickname: Witblits
Home Town: Johannesburg
Current 4x4: 2004 GU 3TDi (Lexus) - aka "Witblits" (sold)
1996: GQ TB48 conversion - aka "Skilpad"
1993: GQ SWB TB42 - aka "Shortie"
1985: MQ Patrol (Safari) SD33 - aka "Toro"
Home Language: Afrikaans
Has thanked: 46 times
Been thanked: 175 times

Re: Dino day - Saturday 5 October

Post by Alex Roux »

Oetie wrote:
07 Oct 2019 08:49
Peter Connan wrote:
06 Oct 2019 22:05
I asked them to mail me all the results, but have not received them yet.

If I get them, i will post them.
I am not sure if relevant, and do not want to open a can of worms.... but should one not also keep tyre size and make in mind when comparing the results?
Kan ek voorstel elkeen pm Piet sy score en band omtrek.
Skilpad, Shortie & Toro.

User avatar
Peter Connan
Moderator
Posts: 6079
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 587 times
Been thanked: 570 times

Re: Dino day - Saturday 5 October

Post by Peter Connan »

Apparently wheel size doesn't make a difference to power on a dyno. See here:

https://youtu.be/6F4YEb20_eg and https://www.4x4community.co.za/forum/sh ... ost4144255

What it does do, is to reduce torque at the wheels, but increase speed, and since power is torque multiplied by speed, the power remains the same.

Of course, if the wheels start spinning, then it would make a difference. But that's a different matter entirely.
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
Peter Connan
Moderator
Posts: 6079
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 587 times
Been thanked: 570 times

Re: Dino day - Saturday 5 October

Post by Peter Connan »

Here are the graphs for the Patrols (not going to share the other cars' results.
BD40HFGP.pdf
(125.26 KiB) Downloaded 38 times
CV68YVGP.pdf
(124.69 KiB) Downloaded 32 times
DP32MRGP.pdf
(123.29 KiB) Downloaded 35 times
FV42ZKGP.pdf
(120.88 KiB) Downloaded 25 times
FW25SLGP G3.pdf
(117.89 KiB) Downloaded 27 times
FW25SLGP.pdf
(120.74 KiB) Downloaded 23 times
HJ44CWGP.pdf
(132.71 KiB) Downloaded 22 times
HP96GDGP.pdf
(122.49 KiB) Downloaded 31 times
JF68ZNGP.pdf
(122.76 KiB) Downloaded 31 times
JWJ809GP.pdf
(123.95 KiB) Downloaded 29 times
LGS987GP.pdf
(124.85 KiB) Downloaded 39 times
TMF021GP.pdf
(121.09 KiB) Downloaded 29 times
YBB092GP.pdf
(120.31 KiB) Downloaded 32 times
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
Peter Connan
Moderator
Posts: 6079
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 587 times
Been thanked: 570 times

Re: Dino day - Saturday 5 October

Post by Peter Connan »

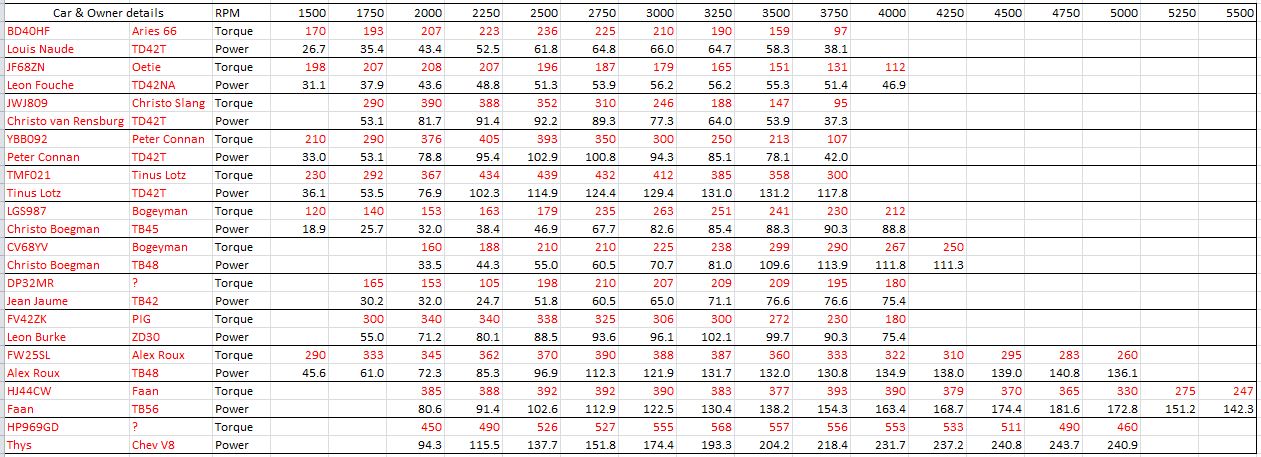

Here are the results of all the Patrols in tabular form:
Results Table.JPG
Results Table.JPG (170.71 KiB) Viewed 2008 times
Note that I tried to take the average of two runs on each car.

I wanted to do a graph of all the cars, but couldn't get it to work. My Excell skills are rather lacking, and it gets way too confusing anyway.

So I did a couple of comparison graphs for discussion.

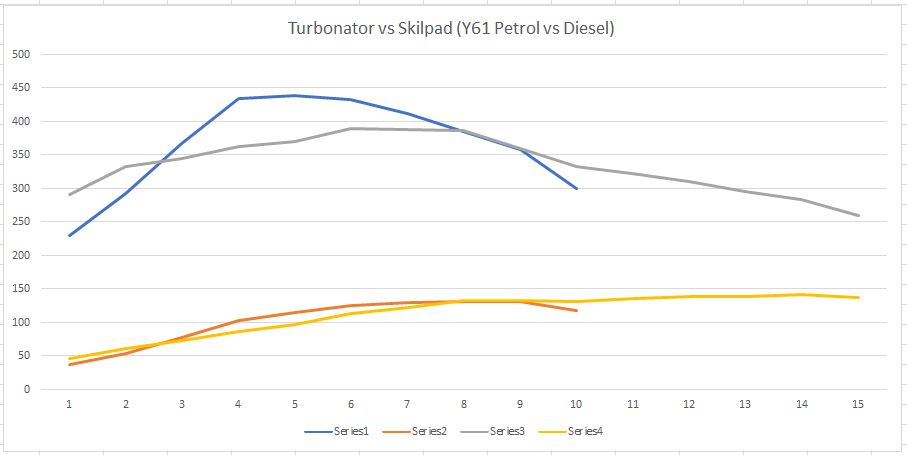

Firstly, two Y61's. Sort of. Well, Y61 petrol (TB48) versus a TD42T. Specefically, the Turbonator's wheels:
Turbonator vs Skilpad.JPG
Turbonator vs Skilpad.JPG (44.53 KiB) Viewed 2008 times
Notice how the petrol has a far wider, flatter torque and power spread. But the TD42 has a considerably higher peak torque, and that peak happens to be at almost exactly at120km/h in top gear.

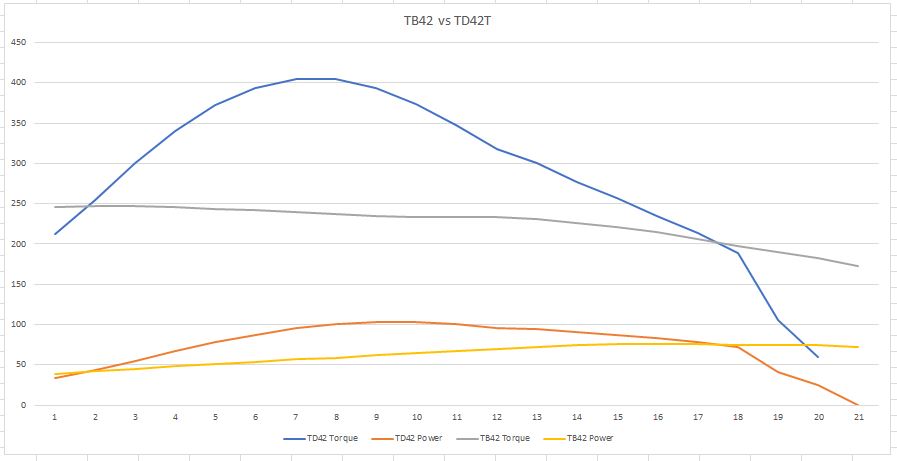

Here is something similar, but a bit of a cheat: this is my car, nine years ago with the original TB42, vs the weekend's result with the TD42. Not the same dino, not the same weather, so not really comparable, but still:

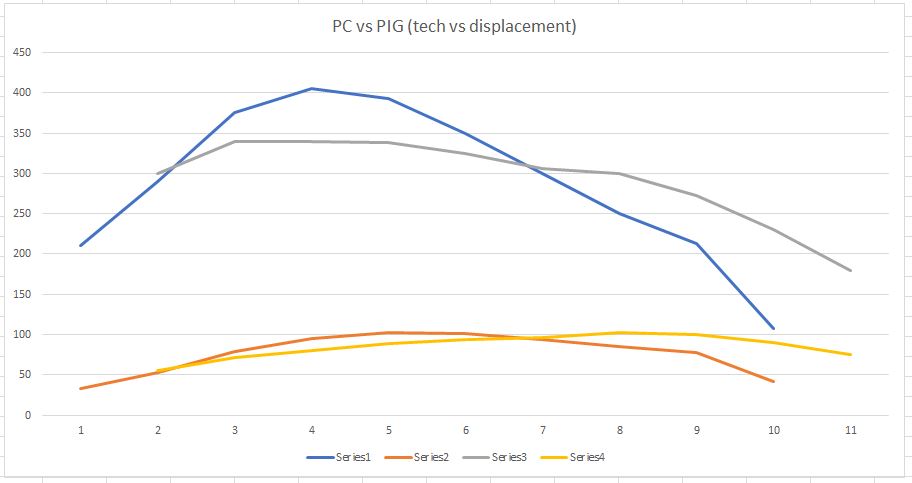

Here is a comparison between my TD42 and the ZD30:
PC vs PIG.JPG
PC vs PIG.JPG (44.66 KiB) Viewed 2008 times
Similarly to the petrol engines, the newer tech engine has a flatter, broader spread, specifically at higher revs.

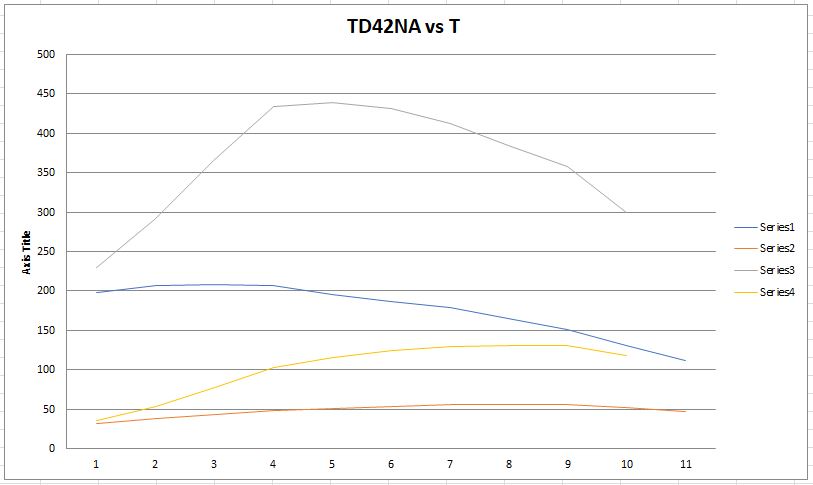

And here are two TD42's. NA vs Turbonator:

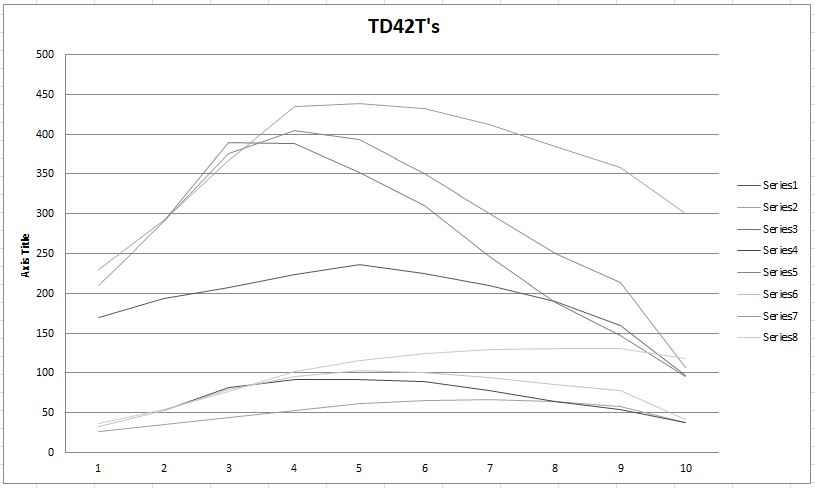

And lastly, all the TD42 Turbos. Hopefully Michael can explain the cause of the differences:
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
Oetie
Senior Member
Senior Member
Posts: 220
Joined: 13 Jan 2014 15:21
Full Name: Leon Fouche
Nickname: Oetie
Home Town: Rooihuiskraal, Centurion
Current 4x4: 2009 TD42T Patrol
Home Language: Afrikaans
Has thanked: 202 times
Been thanked: 61 times

Re: Dino day - Saturday 5 October

Post by Oetie »

Peter thank you for the analysis and graphs, make some interesting reading.

As for my TD42na..... we will have to do a second dyno day early in the new year.... :biggrin:
One life, live it to the fullest!!
ORRA - L65
HAM - ZS6LEF

Tlou - 2009 Patrol TD42T

User avatar
JohnBoyZA
Site Admin
Posts: 1350
Joined: 02 Apr 2009 14:34
Full Name: John Murray
Nickname: John Boy
Home Town: Bloubergstrand
Current 4x4: Patrol GRX 4.8
Home Language: Afrikaans/English
Location: Big Bay, Cape Town
Has thanked: 527 times
Been thanked: 141 times

Re: Dino day - Saturday 5 October

Post by JohnBoyZA »

Sjoe,impressive power and torque!!!

Thys, is that a lumina SS engine (6l)?
Nissan Patrol, GRX, 4.8 (GU Y61)
Flickr: http://www.flickr.com/photos/jhemurray/sets/

User avatar
Tinus lotz
Moderator
Posts: 7894
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 690 times
Been thanked: 434 times

Re: Dino day - Saturday 5 October

Post by Tinus lotz »

Daai is tommie se yster se ou motor weet net dis n groot 8 daai dink 7 lieter . En al daai was wiel krag .

Pieter B
Patrolman
Patrolman
Posts: 562
Joined: 29 Sep 2014 12:40
Full Name: Pieter Botha
Nickname: Pieter
Home Town: Alberton
Current 4x4: '05 Patrol 4.8 GRX
Home Language: Afrikaans
Has thanked: 5 times
Been thanked: 73 times

Re: Dino day - Saturday 5 October

Post by Pieter B »

Alex, jou 4.8 maak mooi krag. Hy maak goeie krag teen lae revolusies. Weet jy wat aan daai enjin gedoen was?
