A little audio upgrade

Post by Wayside » 21 Feb 2019 12:45

So over the past few days i've been busy on and off removing the interior of my 3.0 Di. Unfortunately I have a rather painful shoulder injury, so I work as and when I can, while still trying to run a backup power business during these trying load shedding times.

Equipment to be installed (all already purchased):

Head Unit: Pioneer AVH-2050BT, with a reverse camera
Front stage: Alpine Type R 6.5" splits, but using Pioneer S-350 tweeters
Rear: MTX 6.5" Mids
Subs: 2 x Rockford Fosgate 10" P1 Subwoofers
Amplifier for door speakers: SPL Dynamics 150.4.
Amplifier for subwoofers: Alpine MRX-110 monoblock
20 sheets of Dr Artax Gold CLD
6 sqm of 6mm closed cell foam
6 sqm of 8mm closed cell foam

It's a serious hodge podge of equipment, i'm usually pretty anal about all my equipment being the same, but I don't really care at this stage of my life and don't want to spend more money.

So far I've lined wherever i can in the roof with the Dr Artax, and on top of this with 8mm closed cell foam. I purchased this from Sondor, and applied it using Contact adhesive. I then lined the entire roof lining with the 6mm closed cell foam. This one has an adhesive backing, i imported it from China. Didn't take pictures of this, but i'm sure it'll help keep the sound in rather nicely, just the sunroof will be a weak point.

Today's job is removing the seats and carpeting. I'll be needing to fix the aircon leak before i give the entire floor area a good scrub before treating it to some deadening too.


NoPressure
Senior Member
Senior Member
Posts: 124
Joined: 12 Nov 2018 21:39
Full Name: Ruan
Nickname: Ruan
Home Town: Swakopmund
Current 4x4: 2017 Ford Ranger 3.2 D/C 4x4 Auto
2000 Nissan Patrol 4.5 GRX M/T
Home Language: Afrikaans
Has thanked: 49 times
Been thanked: 30 times

Re: A little audio upgrade

Post by NoPressure » 21 Feb 2019 13:05

Sounds good (pun intended).

Where are you going to put the subs?

User avatar
Wayside
Full Member
Full Member
Posts: 28
Joined: 07 Jan 2019 17:34
Full Name: EJ Watson
Nickname: EJ
Home Town: Benoni
Current 4x4: 2002 3.0 Di
Home Language: English
Has thanked: 3 times
Been thanked: 3 times

Re: A little audio upgrade

Post by Wayside » 21 Feb 2019 13:07

In the boot, will use an Anderson connector to make it easy to take out if we use the jump seats.

User avatar
Wayside
Full Member
Full Member
Posts: 28
Joined: 07 Jan 2019 17:34
Full Name: EJ Watson
Nickname: EJ
Home Town: Benoni
Current 4x4: 2002 3.0 Di
Home Language: English
Has thanked: 3 times
Been thanked: 3 times

Re: A little audio upgrade

Post by Wayside » 21 Feb 2019 13:09


Anthony Forgey
Senior Member
Senior Member
Posts: 405
Joined: 07 Apr 2016 09:46
Full Name: Anthony Forgey
Nickname: Anthony
Home Town: Randburg
Current 4x4: 98 4.2D
Home Language: English
Has thanked: 82 times
Been thanked: 105 times

Re: A little audio upgrade

Post by Anthony Forgey » 21 Feb 2019 19:49

Nice :thumbup:
'98 Patrol 4.2D (turbo added)

Intelligence is measured in smarts, stature is measured in hearts

User avatar
Wayside
Full Member
Full Member
Posts: 28
Joined: 07 Jan 2019 17:34
Full Name: EJ Watson
Nickname: EJ
Home Town: Benoni
Current 4x4: 2002 3.0 Di
Home Language: English
Has thanked: 3 times
Been thanked: 3 times

Re: A little audio upgrade

Post by Wayside » 21 Feb 2019 20:13

How the heck do I add pictures properly?

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 6341
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 349 times
Been thanked: 344 times

Re: A little audio upgrade

Post by ricster » 22 Feb 2019 08:42

When you click "post reply" scroll down a bit and you will see 2 tabs one "options" and the other "attachments". Click attachments. then click "add files". select the pics from whichever file you want and you will see it uploading in the small window. Then simply put the cursor where you want the photo and click "place inline" ( you don't even have to click the "place inline " button.... it does it for you
:thumbup: :thumbup:
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

graham1
Senior Member
Senior Member
Posts: 374
Joined: 15 Jun 2015 17:46
Full Name: graham robertson
Nickname: graham1
Home Town: Joburg
Current 4x4: 2004 Patrol 4.8; 1999 Patrol 4.2D
Home Language: English
Has thanked: 1 time
Been thanked: 38 times

Re: A little audio upgrade

Post by graham1 » 22 Feb 2019 09:01

Nice!
I need to do this soon with mine. The speakers have slowly but surely stopped working. From the rears first, then the front doors, and now all I have left are the front tweeters working. Very frustrating!

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 6341
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 349 times
Been thanked: 344 times

Re: A little audio upgrade

Post by ricster » 22 Feb 2019 09:09

I can definitively recommend Kicker split system speakers. I have ( I think ) 6.5" splits all round and a Kicker Slimline sub. Awesome sound quality, and the Iron Maiden rocks out every time I drive it.....hahaha... seeing as I'm a wrinkly rocker !!
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Wayside
Full Member
Full Member
Posts: 28
Joined: 07 Jan 2019 17:34
Full Name: EJ Watson
Nickname: EJ
Home Town: Benoni
Current 4x4: 2002 3.0 Di
Home Language: English
Has thanked: 3 times
Been thanked: 3 times

Re: A little audio upgrade

Post by Wayside » 22 Feb 2019 09:53

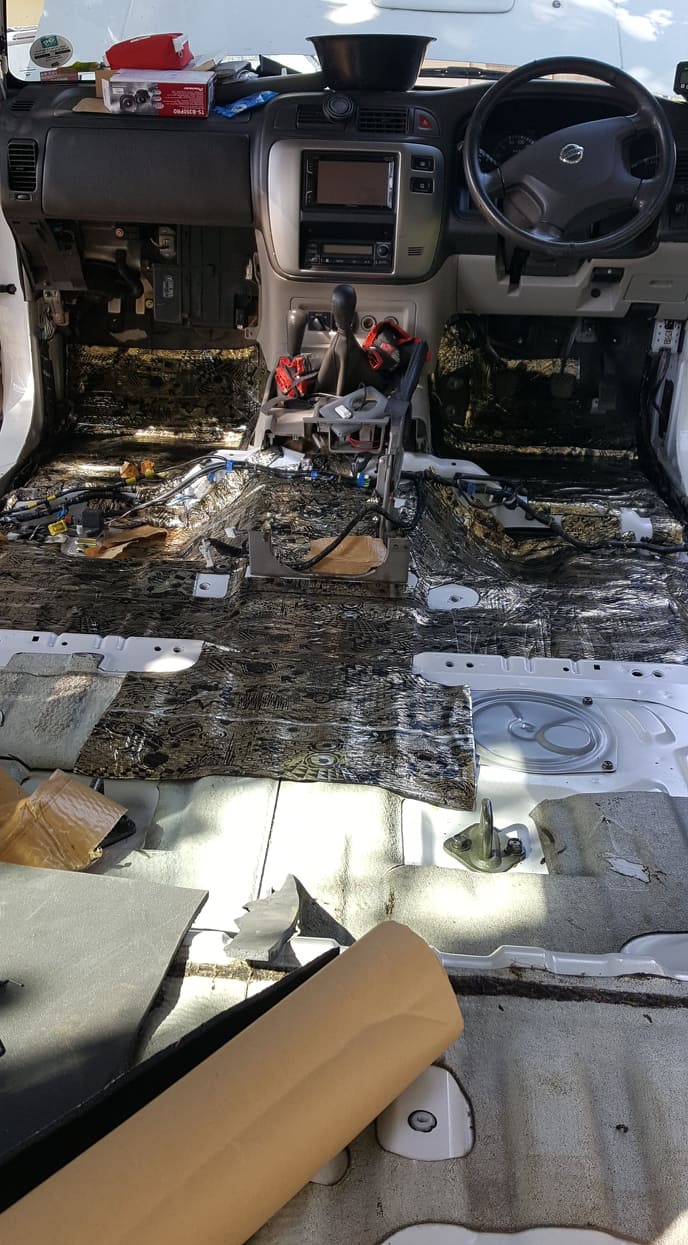

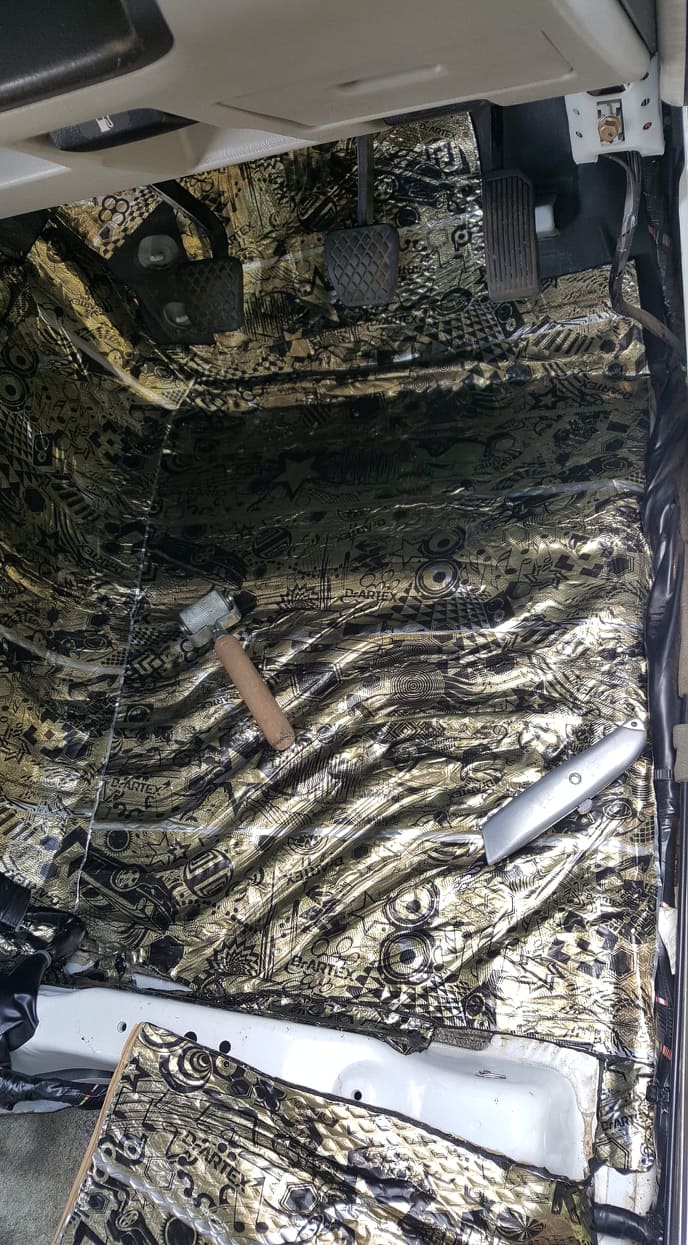

So i've done the front and rear footwells, as well as the rear wheel arches. The vehicle has quite a lot of factory fitted deadening already, much more than previous vehicles i've owned. I have used 14 sheets of the CLD thus far, and still need to do the doors, so I've left a bit of a boot area without CLD. The factory stuff should be fine here, as i'll be adding the 8mm closed cell foam anyway.
