Rear diff overhaul TD42

Post by **Griffman** » 07 Dec 2016 14:40

Hi everyone

My truck is in at Transaxle for various drive train issues, one of which being a rumble coming from the rear diff.

The guys do not want to strip the diff down until they are certain they can get parts.

Can anyone help me with a supplier for parts?

The truck is an early 90's TD42 n/a pick up....an import I assume.

Any help would be very much appreciated.

Post by **David M** » 07 Dec 2016 16:29

Not parts but contact Dawid Volschenk for a used replacement - nil8three 4doublenine 15eighteight

Post by **Peter Connan** » 08 Dec 2016 05:33

I would be quite surprised if most of the parts are not common to the Safari pick-ups. Can't promise though.

Post by **Tinus lotz** » 08 Dec 2016 05:55

First of all pull the diff center portion then count the teeth then give Dawid a call and see if he has a spare ...bearings will be avalable

Post by **Griffman** » 08 Dec 2016 07:39

Thanks for the help guys, will give David a call.

Post by **Marino4x4** » 08 Dec 2016 08:49

Hi Justin

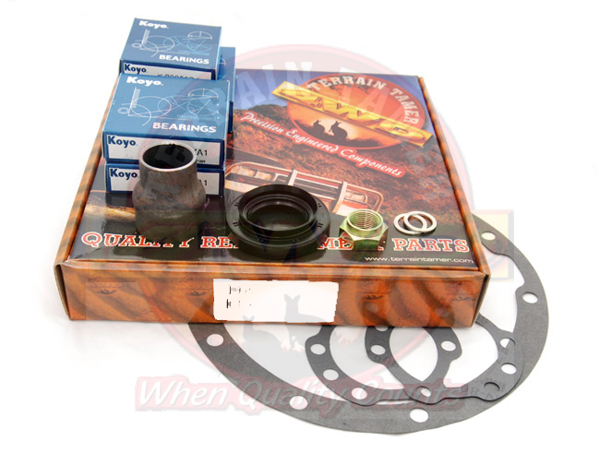

We import parts from Terrain Tamer in Australia. I can get a Diff Overhaul kit from them for the H233B and H260 axles (GQ TD42). Just let me know what you have in your vehicle. Please have a look what is in the kit below. We should be able to assist with the crown wheel and pinion as well. If you are interested the parts can be here early 2017.

: DKN13DL.jpg (188.64 KiB) Viewed 3982 times

Thanks

Marinus
Terrain 4X4 Parts

Post by **Tinus lotz** » 08 Dec 2016 08:58

Even better new spares for you diff strip the center and put picks so we can have a look ....there are pleanty guys like wilkie ect that understands them properly

Post by **Peter Connan** » 08 Dec 2016 15:18

Pretty sure it must be an H260?

Does it have a ring of small bolts on the hubs, inside the rim's centre hole?

Post by **Griffman** » 09 Dec 2016 08:33

Going to pick it up today and will check.

Transaxle says they have sourced parts but want to do a proper quote first $$$.

Post by **Griffman** » 20 Dec 2016 12:53

Hi Guys

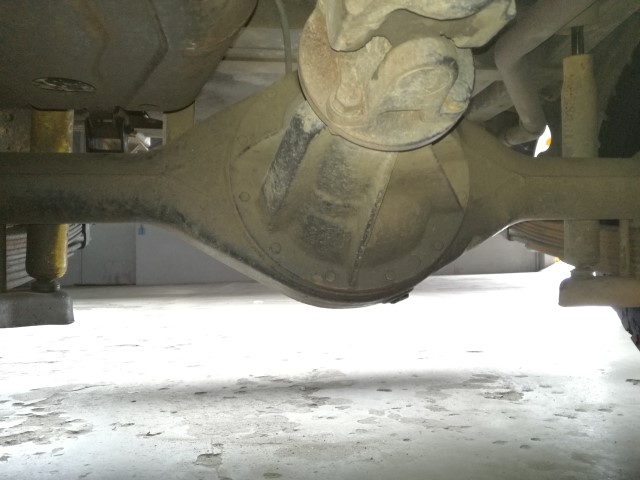

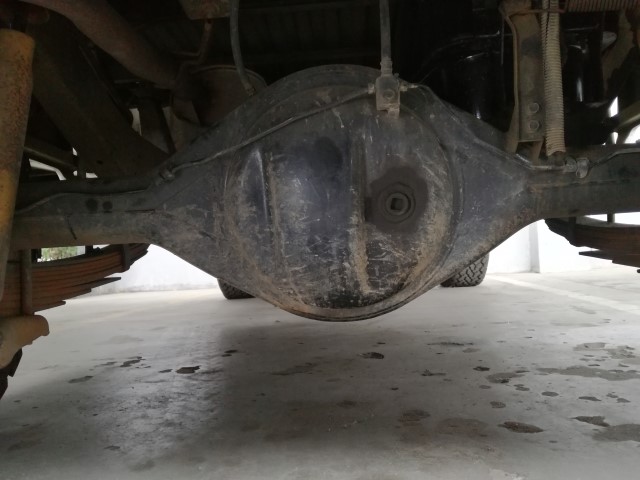

Can anyone help me with identifying the axle? I am attaching some pics here. It has 12 bolts on the housing.

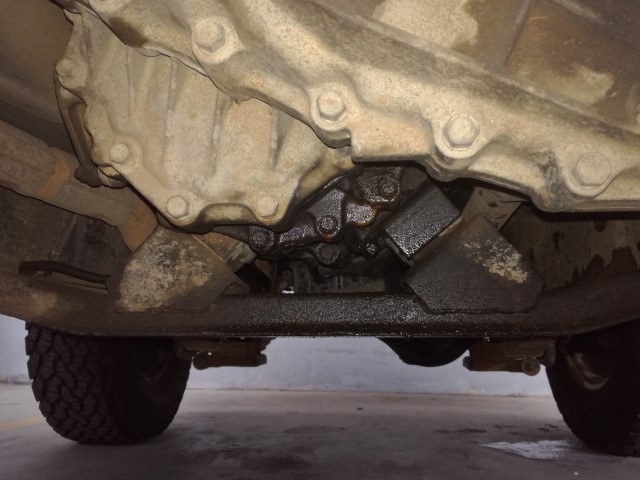

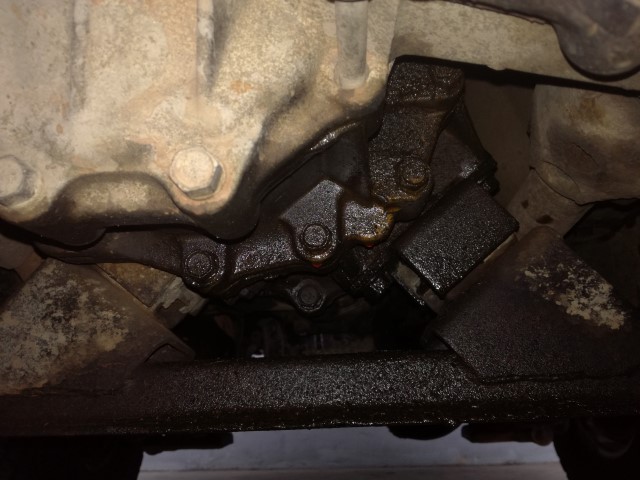

Also attached is a pic of the leak from the transmission that has developed. I read that the vibration from the prop shaft has caused the seal to fail. Can anyone confirm what issues will have to be resolved here?

Just to confirm, the vehicle is a TD42GQ Y60 pickup with leaf springs rear and front.

Thanks for the help!
