Can you identify this???

[PaulvdMerwe]

Good day all,

As some of you have noticed I am in the process of repairing my ZD30..... and no this grenade did not go BOOOM

Due to a faulty injector it over fueled on no 1 cylinder.

When I striped it, I found the following bits in the sump, could you perhaps help me identify it??



I would really like your assistance with this

Thanks
Paul

[Wilkie]

Hi Paul,it looks like its part of the camshaft thrusts that has broken of at the cam saddles. It looks very similar to the 3ZZ Toyota engines cam configurations

good luck

[PaulvdMerwe]

I can add that it is about 15mm in diameter.

Hope this helps.

[Wilkie]

sorry it looks I bit bigger on the photos.

[ricster]

Hmmmm.... yes ...photo was deceiving... hahaha

Could that be something to do with the valves.... a guide of sorts. I assume there are no push rods in a ZD?? The size (15mm) is quite small. The ID of that would be probably around 8mm..... whats the diameter of a valve shaft?

Difficult to see exactly, but is that brass???? the colouring on it looks a little different to what normal metal would look like I think.

[PaulvdMerwe]

Ricster,

Spot on. The inner diameter is 8 mm, not brass though, rather looks to be a very hard service.
My thought is also something around a valve, but the diameter looks a bit small.
I will strip the head and check.

[David]

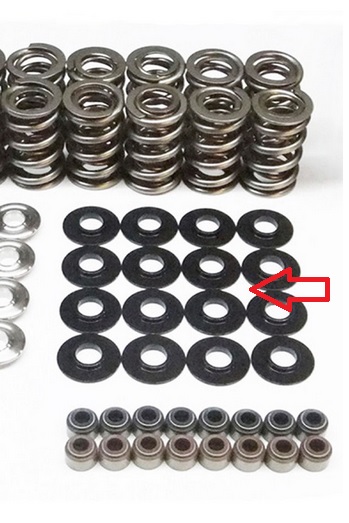

Think it is one of these ...


[SCUBA Patrol]

David,

Ek dink jy is spot on!!

[Wilkie]

Vale spring retainer washer
jy moet daai engine baie mooi skoonmaak voor jy aanmekaar sit ....Voorspoed

[PaulvdMerwe]

Hi Julle,

Baie dankie vir die input...

Nee ek het die valve springs uit gehaal en dit is nie dit nie.

Die ding se diameter is kleiner.
outer diameter = 15 mm
