As most of you have probably noticed by now, I have two great failings professionally.
The first is that I struggle to finish projects. Before one is finished, there are at least two more in the pipeline.
The other one is that iff there is a well established way of doing things, I just have to keep fiddling until I find a less obvious way. Modesty says that the disadvantages often outweigh the advantages, but at least there is always a reason.

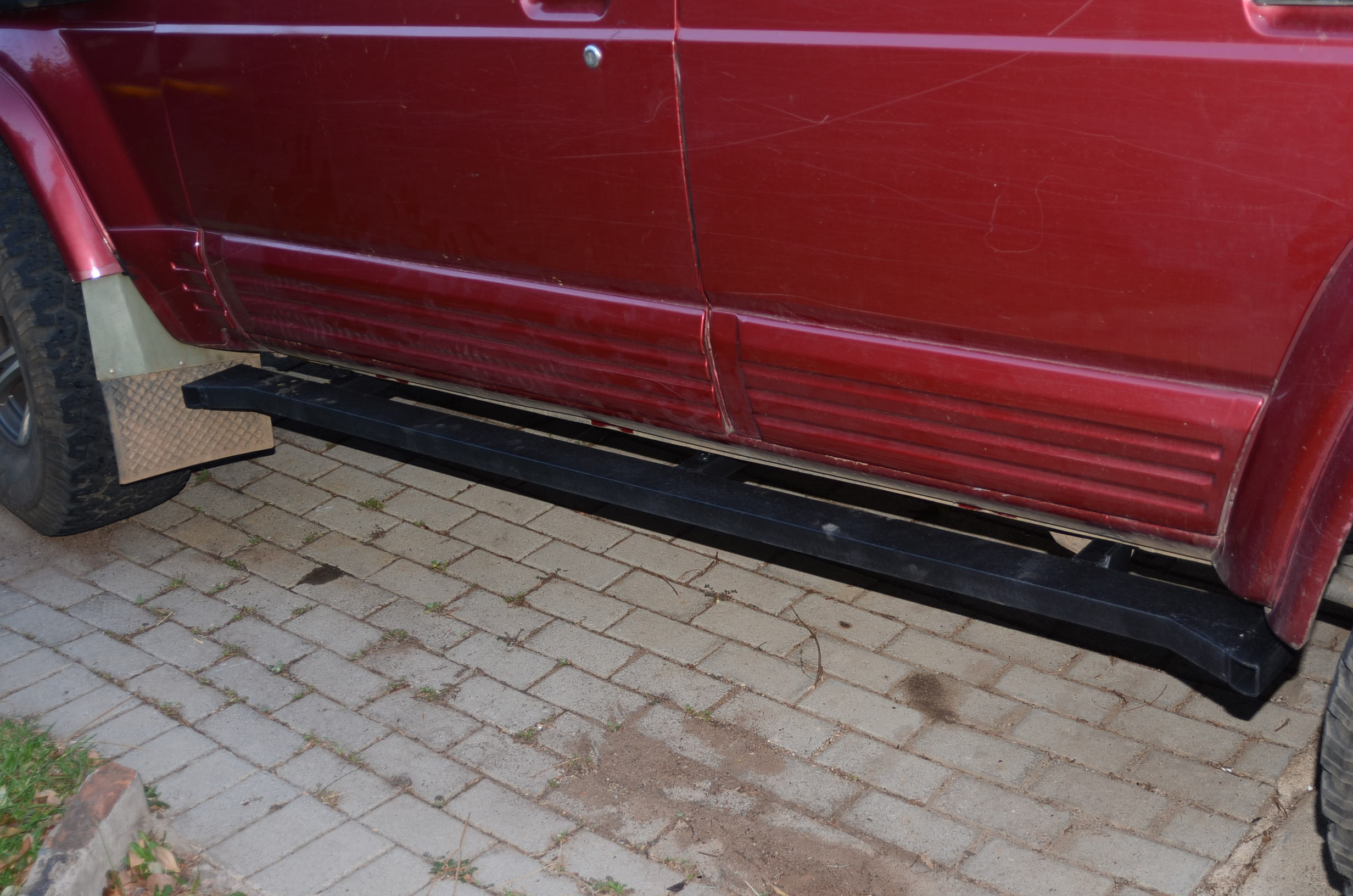

My rocksliders are not the prettiest, but they are seriously strong, and give a good sliding surface so that you don't get hung up easily. The sliders are made from 75x40 channel iron, with the hollow at the bottom. The ends are flared for looks and a piece of 40mm square tube is welded to each end, the intention was to use these as hi-lift points. The mountings are made from 40x40x5 square tube and 60x8 flat bar.

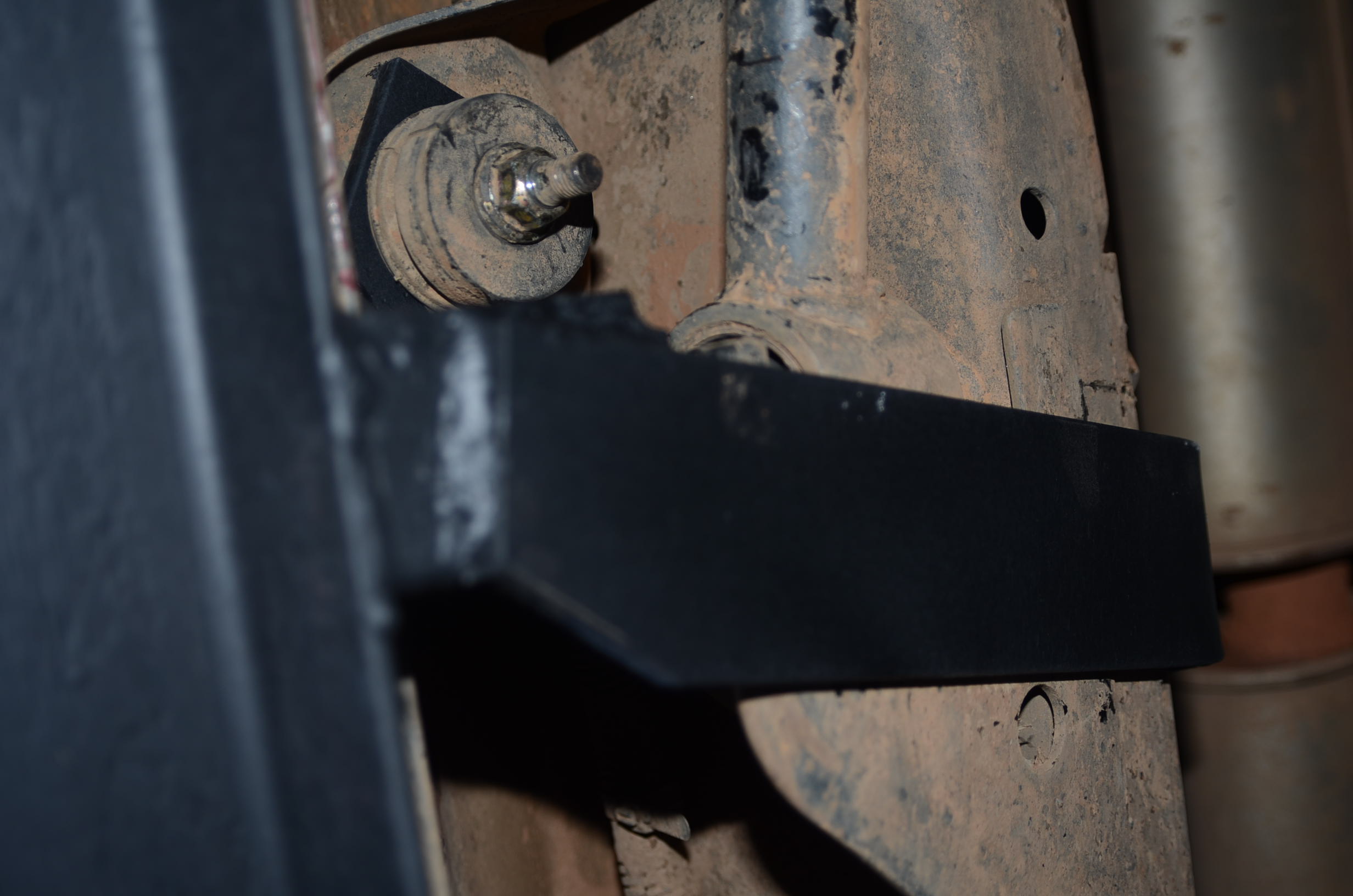

- DSC_2580.jpg (499.38 KiB) Viewed 1999 times
- DSC_2581.jpg (308.9 KiB) Viewed 1999 times
- DSC_2582.jpg (377.14 KiB) Viewed 1999 times

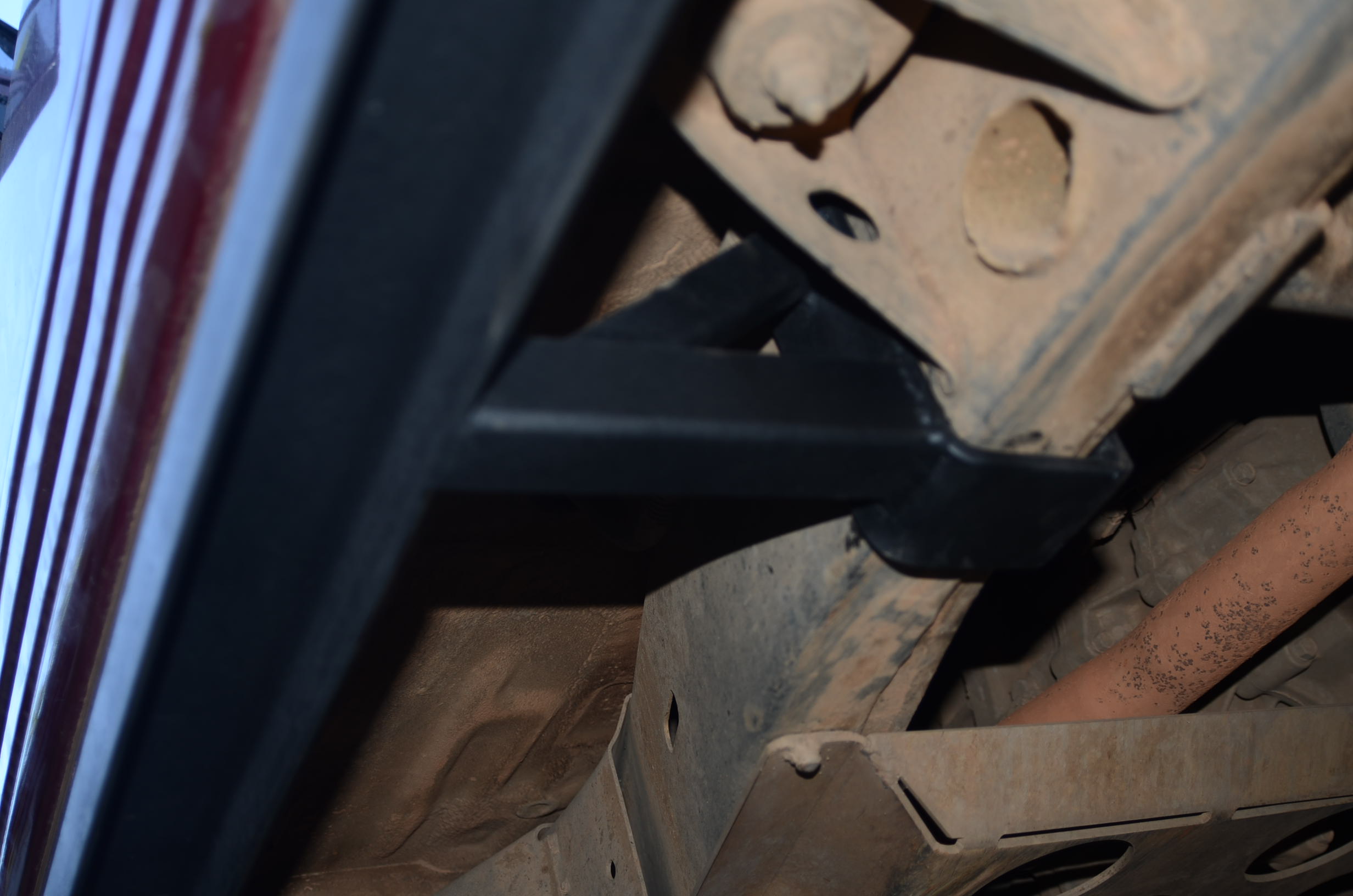

There is also a middle support, but tjis is just a cradle around the bottom of the chassis member and doesn't have any bolts.
- DSC_2583.jpg (313.04 KiB) Viewed 1999 times
, wat is hul gewig ? en dan die groot vraa gaan jy hul ook kommersieel beskikbaar maak vir ons GQ ouens soos die pensplate.
