Re: 4.5 sluggish

Post by Jules »

Hi Frans & Gerrit

An accountant question now, is the reason for the 4.5 not coming close to 145Kw the fact that it has 12 valves instead of 24 :confused:

Shalom
Jules
Walk by FAITH not by sight
2014 Pathfinder 2.5 LE
Stofpad 4x4 Bashplate
42&60L Snomaster Freezer/Fridge
Buzzard Industries Overlander Trailer
User avatar
Herrie
Patrolman 1000+
Patrolman 1000+
Posts: 2999
Joined: 08 Apr 2009 07:17
Full Name: Kobus Pienaar
Nickname: Herrie
Home Town: Kempton Park
Current 4x4: 1999 Patrol 4500e GRX
1983 Datsun Safari
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 55 times
Been thanked: 94 times

Re: 4.5 sluggish

Post by Herrie »

Hi Gerrit, die Leisure Wheels, SA4x4, CAR en die Auto Digest wys dit as 150Kw - ek is seker dat my Owners Handbook dit ook wys.
Herrie op Safari/Patrollie
1983 Safari
1999 Patrol 4500 GRX
User avatar
David
Patrolman
Patrolman
Posts: 723
Joined: 17 Dec 2009 12:42
Full Name: David Prinsloo
Nickname: David
Home Town: Stellenbosch
Current 4x4: 2006 Patrol 4.8 GRX
Home Language: Afrikaans
Location: Stellenbosch
Has thanked: 2 times
Been thanked: 49 times

Re: 4.5 sluggish

Post by David »

Hey - it is the freeflow exhaust that adds the extra 5kW :lol:
2006 Patrol 4.8 GRX Tiptronic Y61/GU(4)
ARB Bullbar, BZT rear bar, TJM 2" Suspension, Snorkel, LT 285/70/17 BFG KO2's, 40L Engel

Stop Rhino Poaching Supporter!
User avatar
tour de frans
Patrolman
Patrolman
Posts: 797
Joined: 03 May 2009 19:48
Been thanked: 22 times

Re: 4.5 sluggish

Post by tour de frans »

Hello,no Jules.What they claim are on the 12v.I am not familiar with the nissan 24v,4.5 inline 6.
Many maufacturers claim power that a vehicle do not make.My 4l ford were whay of the mark....
I had a customer at the dyno that gave Volvo a hard time with a new car that did not made the power they claim.
The reason for most power problems were not a bad car or batch,the claims,specially the Japs,were with better fuel.Higher octane.Not only the differance between 'sae' or 'din' they use to claim power.
Rdgs
Frans
Gu y61 wagon- 6.0L chevy
Gu y61 pickup- 6.2L chevy

Tour de frans - het niks met n bicycle uit te waai nie.
Maniac
Full Member
Full Member
Posts: 49
Joined: 01 Sep 2009 17:34
Full Name: Manie Carstens
Nickname: Maniac
Home Town: Durbanville
Current 4x4: Hilux DC
F62 LC
4.5 GRX Patrol
Home Language: Afrikaans / English
Location: Durbanville

Re: 4.5 sluggish

Post by Maniac »

OT, but mine only gave 113 kW on the dino a while ago. It has a chip and freeflow on. Any ideas why and how to fix it?
User avatar
Gerrit Loubser
Moderator
Posts: 851
Joined: 07 Apr 2009 04:30
Full Name: Gerrit Loubser
Nickname: Gerrit Loubser
Home Town: Richards Bay
Current 4x4: None
Home Language: Afrikaans
Location: Richards Bay
Been thanked: 11 times

Re: 4.5 sluggish

Post by Gerrit Loubser »

Remember that there are significant losses in the drivetrain between the engine flywheel and the road: There are frictional losses in the transmission, transfer box, drive shafts, differential(s), axles and at the tyre-road interface. All of those losses stack up and can easily total 25% of engine power. Now if the 113 kW figure is an uncorrected figure, measured at the wheels and if the losses are assumed to be 25%, then this translates to an engine flywheel value of about 151 kW.
Gerrit Loubser

2003 Land Cruiser 100 VX TD
1999 Patrol 4.5E GRX M/T ("Imvubu") - GONE; Go well Old Girl :-(
2003 Pajero 3.2 DiD LWB A/T - GONE; One of the best cars I ever had :-(
1996 Land Cruiser 80 VX 4.5 EFI A/T - SOLD
User avatar
tour de frans
Patrolman
Patrolman
Posts: 797
Joined: 03 May 2009 19:48
Been thanked: 22 times

Re: 4.5 sluggish

Post by tour de frans »

You're right with all the losses Gerrit,but 151kw @ the flywheel. :think:
If it is so,it will be the strongest one I have heard off.113KW are a bit low,but sound to fit the car more.Maybe Maniac can show us the graph?
Cheers
Gu y61 wagon- 6.0L chevy
Gu y61 pickup- 6.2L chevy

Tour de frans - het niks met n bicycle uit te waai nie.
User avatar
Herrie
Patrolman 1000+
Patrolman 1000+
Posts: 2999
Joined: 08 Apr 2009 07:17
Full Name: Kobus Pienaar
Nickname: Herrie
Home Town: Kempton Park
Current 4x4: 1999 Patrol 4500e GRX
1983 Datsun Safari
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 55 times
Been thanked: 94 times

Re: 4.5 sluggish

Post by Herrie »

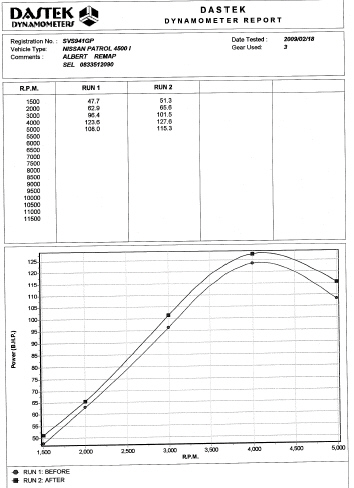

Hier is Ungili se dyno grafiek.
Attachments
Herrie op Safari/Patrollie
1983 Safari
1999 Patrol 4500 GRX
JG Shields
Patrolman
Patrolman
Posts: 789
Joined: 18 Aug 2009 14:52
Full Name: JG Shields
Nickname: JG
Home Town: Pretoria
Current 4x4: Toyota Land Cruiser 105 GX 4500 EFi
Home Language: Afrikaans
Location: Pretoria

Re: 4.5 sluggish

Post by JG Shields »

25% on top of 113 = 141
Patrol fan!
Maniac
Full Member
Full Member
Posts: 49
Joined: 01 Sep 2009 17:34
Full Name: Manie Carstens
Nickname: Maniac
Home Town: Durbanville
Current 4x4: Hilux DC
F62 LC
4.5 GRX Patrol
Home Language: Afrikaans / English
Location: Durbanville

Re: 4.5 sluggish

Post by Maniac »

Gerrit Loubser wrote:Remember that there are significant losses in the drivetrain between the engine flywheel and the road: There are frictional losses in the transmission, transfer box, drive shafts, differential(s), axles and at the tyre-road interface. All of those losses stack up and can easily total 25% of engine power. Now if the 113 kW figure is an uncorrected figure, measured at the wheels and if the losses are assumed to be 25%, then this translates to an engine flywheel value of about 151 kW.
Gerrit, ek weet nie of dit op die wiele is nie????? Ek sal grafiek soek en dit dan post.

Die grafiek hierbo, is dit op die wiele / flywheel, want myne het dieselfde gelyk, maar net 113 kW MAX
