Tappet cover cup washers

Post by Iaan du Toit »

I am busy repairing a Patrol 4.2 pickup. Some of the cup washers that hold the tappet cover in place was missing and Nissan could not supply.

After a bit of head scratching and some time on the lathe I came up with the following plan that worked 100%.

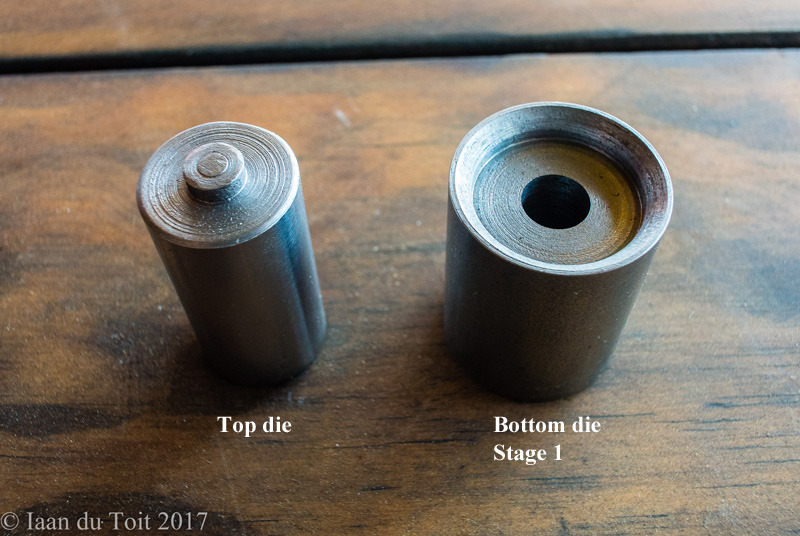

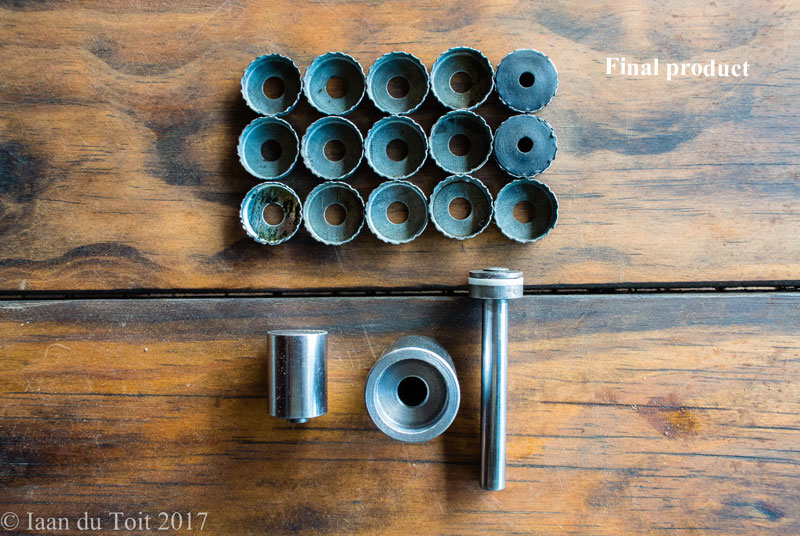

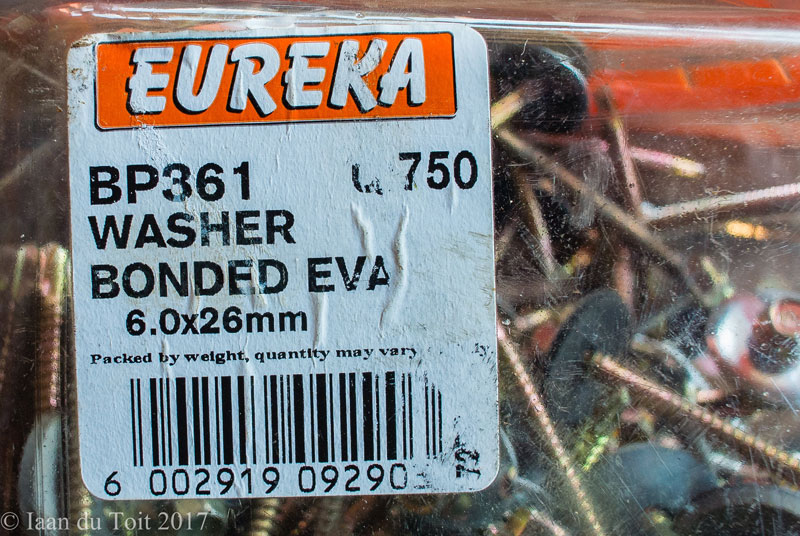

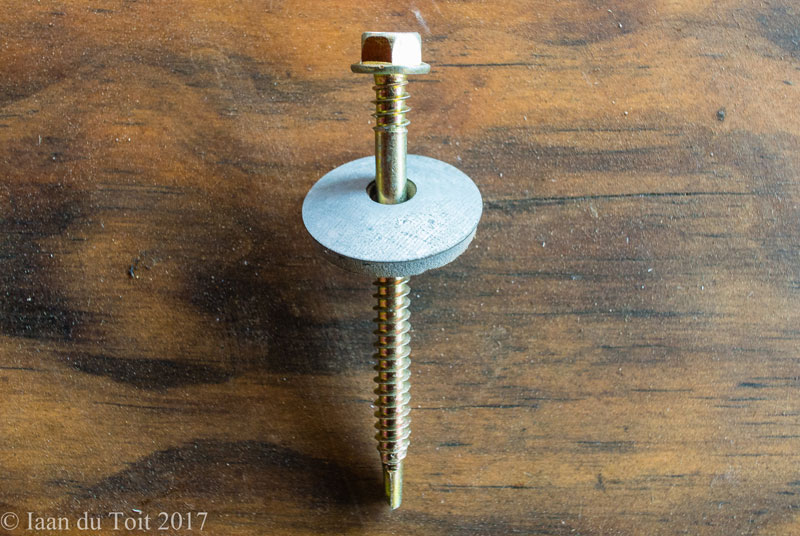

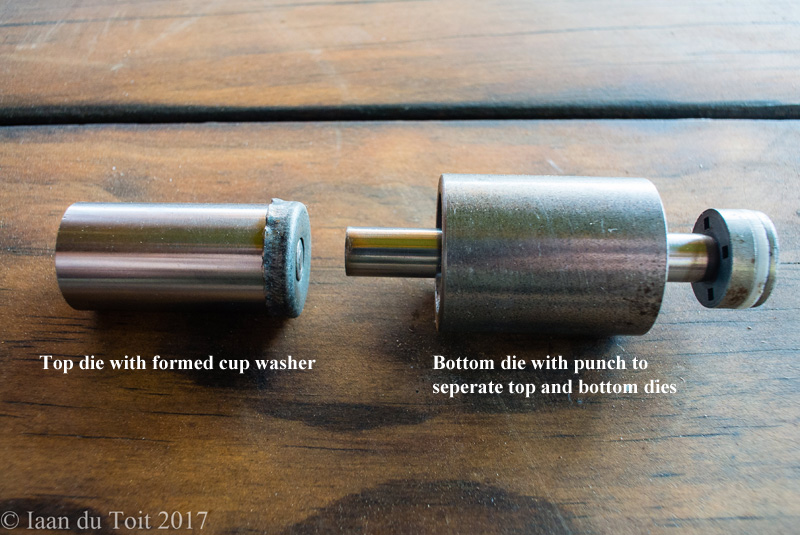

I formed the cup washers from the thin metal part of conventional bonded washers pressed with a top and bottom die.

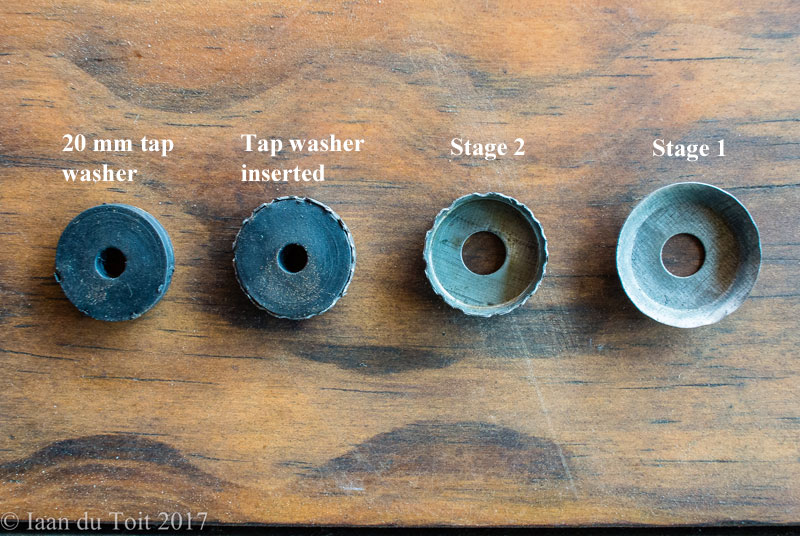

A standard 20 mm water tap washer fits perfectly. I had some stainless steel washers that fit on the top of the rubber tap washer.

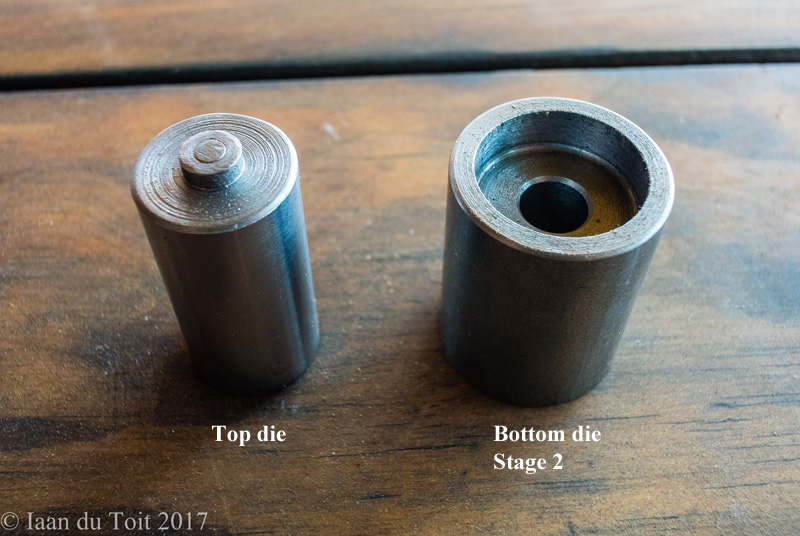

I found it easier to form the cup washers in two stages.

As I am not good with words I will let the photos do the talking.
Wat ek is, is net genade.
Wat ek het is net geleen.

User avatar
Posts: 2693
Joined: 05 Mar 2014 14:39
Full Name: Michael
Nickname: Steyn
Home Town: Centurion
Current 4x4: Patrol GU 4.2 Turbo Diesel
Home Language: Afrikaans
Location: Centurion, PTA
Has thanked: 182 times
Been thanked: 305 times

Re: Tappet cover cup washers

Post by Michael »

Iaan, dis briljant!! Dankie dat jy dit deel, want dis nou maar een item daai wat altyd vermis gaan
"The Just shall live by Faith" Rom1:17

Check out my build here My Patrol
And my engine rebuild here mostly engine related stuff

User avatar
Tinus lotz
Posts: 7859
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 677 times
Been thanked: 427 times

Re: Tappet cover cup washers

Post by Tinus lotz »

Netjies mater daai lyk reg :blonde: :salute: :salute:

User avatar
Patrolman 1000+
Patrolman 1000+
Posts: 2002
Joined: 21 Oct 2014 21:01
Full Name: JP Viviers
Nickname: Oupoot
Home Town: JHB
2004 4.8 GRX TURBO "Tinkerbell"
2003 TD42T GRX "The Coal Roller"
Home Language: Half & Half
Has thanked: 149 times
Been thanked: 145 times

Re: Tappet cover cup washers

Post by hugejp »

Baie mooi!


You CAN with a NISSAN!

Jy KAN met 'n DATSUN!

User avatar
Posts: 509
Joined: 26 Jan 2016 14:48
Full Name: Rhett van der Stelt
Nickname: Rhett
Home Town: Heidelberg
Current 4x4: 2004 Nissan Patrol 4.8 GRX
1980 Toyota Land Cruiser HJ47
Home Language: English
Location: Heidelberg
Has thanked: 144 times
Been thanked: 59 times

Re: Tappet cover cup washers

Post by Rhett »

The ingenuity of us Patrollers amazes me! Good stuff!
https://www.youtube.com/channel/UC9e98c ... XUyixKJavQ

Nissan Patrol 4.8 GRX
Toyota Land Cruiser HJ47

User avatar
Patrolman 1000+
Patrolman 1000+
Posts: 6453
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 387 times
Been thanked: 362 times

Re: Tappet cover cup washers

Post by ricster »

Well done !!! Those look the part for sure !!!
