TD42 Blowing smoke

Post by Wiseacts »

Hello folks..
What does it mean blowing black smoke from exhaust. Specially when A/C is on? Took to a diesel repare shop had my feul pump checked as well as the injector nozzles clean. Still same problem.
Now started to see slight smoke blowing from cylinder head when opening oil inlet cover. Thanks
P.S. eats diesel like crazy.

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 6515
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 402 times
Been thanked: 379 times

Re: TD42 Blowing smoke

Post by ricster »

Firstly ... Welcome to the Patrol Forum !!

Ok...
Is it a n/a diesel or is there a turbo on it?
Is there an EGT( Exhaust Gas Temp ) gauge already fitted?
If so what are the max temps you reach on a flat road, and under load on an uphill in 5th?
Does it blow black smoke constantly, or only when you accelerate or put the motor under load?
What size tyres are you running?

Black smoke means that the diesel is not being utilized 100%. It is being burnt, but not efficiently. This tells me that you are over-fueling so wasting diesel and making it thirsty. When you let us know the answers to the questions above, then we can offer some advice. There are a lot of clever guys here on the forum that can help.

PS...post a pic of your Patrol for us to see !! :gotpics: :gotpics:
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
Tinus lotz
Moderator
Posts: 7890
Joined: 29 Aug 2010 13:07
Full Name: Tinus lotz
Nickname: Tinus lotz
Home Town: Centurion
Current 4x4: Nissan patrol 4.8 GRX 2005

Toyota 2.7 legend 35 LWB 4X4
Home Language: Afrikaans
Has thanked: 690 times
Been thanked: 433 times

Re: TD42 Blowing smoke

Post by Tinus lotz »

:welcomewave:
Rolling coal not great as cedric said👍

Wiseacts
Newbie
Newbie
Posts: 3
Joined: 06 Aug 2019 13:25
Full Name: Wail
Nickname: Torabora
Home Town: Khartoum
Current 4x4: Nissan patrol TD42
Home Language: Arabic
Has thanked: 1 time

Re: TD42 Blowing smoke

Post by Wiseacts »

ricster wrote:
06 Aug 2019 16:02
Firstly ... Welcome to the Patrol Forum !!

Ok...
Is it a n/a diesel or is there a turbo on it?
Is there an EGT( Exhaust Gas Temp ) gauge already fitted?
If so what are the max temps you reach on a flat road, and under load on an uphill in 5th?
Does it blow black smoke constantly, or only when you accelerate or put the motor under load?
What size tyres are you running?

Black smoke means that the diesel is not being utilized 100%. It is being burnt, but not efficiently. This tells me that you are over-fueling so wasting diesel and making it thirsty. When you let us know the answers to the questions above, then we can offer some advice. There are a lot of clever guys here on the forum that can help.

PS...post a pic of your Patrol for us to see !! :gotpics: :gotpics:
Thanks mate!
It's a non-turboed TD42.."transplant in replacement of a Zd30" It blows black smoke when accelerating and/or putting the motor under load as well as when A/C is on.

I am running 275/70 R16 sized tyres, 2.5" ARB lift kit.
As you said.. I feel over feuling.. As consumption has increased drastically..

What do you think as well blowing slight smoke from cylinder head could be? Visible when oil cover is opened.
Wail.
Attachments

User avatar
Kagiso II
Patrolman 1000+
Patrolman 1000+
Posts: 3761
Joined: 10 Jun 2009 16:58
Full Name: Mac Mc Menamin
Nickname: Oom Mac [Uncle Mac] [Uncle] [Oompie] Kagiso
Home Town: BrentwoodPark, Benoni
Current 4x4: 1982 Datsun Safari 2,8 aka LOBO; [1,300,000 Km verby !]
'99 PATROL 4,2 diesel.
2012 Jimny [SWAMBO se Kantoor-toe]
Home Language: AFRIKAANS
Location: Benoni and wherever the Outreach takes me.
Has thanked: 305 times
Been thanked: 135 times
Contact:

Re: TD42 Blowing smoke

Post by Kagiso II »

Try decreasing the pump setting - it seems it is set VERY rich. Hence the black smoke [fuel smoke] AND the heavy on diesel ..
Don't bring God down to your level of faith ... bring your faith up to His level!

Wiseacts
Newbie
Newbie
Posts: 3
Joined: 06 Aug 2019 13:25
Full Name: Wail
Nickname: Torabora
Home Town: Khartoum
Current 4x4: Nissan patrol TD42
Home Language: Arabic
Has thanked: 1 time

Re: TD42 Blowing smoke

Post by Wiseacts »

Thanks kagiso.. Will try that over the weekend.. There are two screws on the pump.. Which one is the one to decrease if you know..
Wail.

User avatar
Peter Connan
Moderator
Posts: 6069
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 582 times
Been thanked: 568 times

Re: TD42 Blowing smoke

Post by Peter Connan »

Lovely pictures!

Is it the in-line pump or the rotary pump?
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 6515
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 402 times
Been thanked: 379 times

Re: TD42 Blowing smoke

Post by ricster »

Nice Patrol bud !!!!

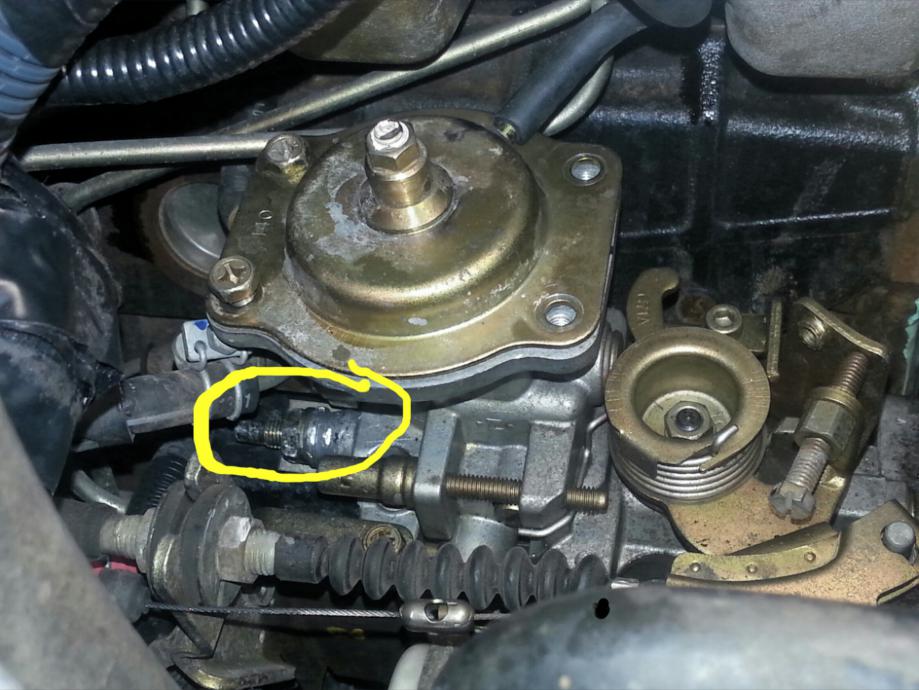

Ok... Have a look here, this is the fuel screw. Turn it out 1/8 turn at a time, drive it and adjust again if necessary a 1/8 turn again till its just giving off a slight puff of black smoke under hard acceleration or load
fuel screw pic.jpg
fuel screw pic.jpg (93.05 KiB) Viewed 1869 times
I nicked this from the Aussie Patrol site on this link....

https://www.patrol4x4.com/threads/diy-p ... ns.296618/
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD

User avatar
ricster
Patrolman 1000+
Patrolman 1000+
Posts: 6515
Joined: 13 Jan 2010 11:16
Full Name: Cedric Warner
Nickname: Cedric
Home Town: Alberton Gauteng
Current 4x4: '99 Nissan Patrol 4.2 Turbo Diesel
Home Language: English
Location: LA..... No not Los Angles ..... Lower Alberton, Gauteng
Has thanked: 402 times
Been thanked: 379 times

Re: TD42 Blowing smoke

Post by ricster »

By the way, does your TD42 motor have an inline Injector pump or rotary?

If a rotary pump, does it have an anneroid thingy on it like in the pic posted earlier?
It shouldn't make a difference if it doesn't have it on, but will just be easier to turbo at a later stage..... cause you know you will do that right?.....hahahaha
Regards
Cedric
Nissan Patrol GL 4.2 Diesel Turbo (Iron Maiden)
Nissan SANI 3.0 V6 4x4 (SOLD)
Isuzu KB 280 DT 2x4 ('ol Smokey) - SOLD
Suzuki TL 1000R "V twin" (Growler) - SOLD
