GQ Spring Length

Post by davidvdm »

Calling the GQ guys for some info please. I was donated a set of standard GQ coils for my SFA build by Offroadbiker. Now the Sani weighs 1100Kg's on the front end. How does that compare to the GQ?

My big issue, I have very little means to lift the Sani up on the springs to check what the compressed measurement of the springs are going to be. I have two weeks before I move to CT, and was wondering if I could do my coil conversion before I leave. The measurement dictates if the coils are going to fit under the chassis rail, or outbound of the chassis.

If anybody could take the measurement of their coils under compression for me, it would be greatly appreciated.
David - Bfreesani
1997 Nissan Sani MK3 2.7TD - Hillbilly (SAFANI)
MQ C200 SFA
MQ H260 LSD Rear
MQ Transfer as second low range
5" Lift
33"x12.5x15" tires on 8.5J rims - Want 35's
DIY rock sliders
DIY Snorkel
Madman EMS

User avatar
Peter Connan
Moderator
Posts: 6079
Joined: 10 Sep 2010 07:21
Full Name: Peter Connan
Nickname: Piet
Home Town: Kempton Park
Current 4x4: 1996 Patrol 4.5SGL
Home Language: Afrikaans
Location: Kempton Park
Has thanked: 587 times
Been thanked: 570 times

Re: GQ Spring Length

Post by Peter Connan »

1260kg, 260mm spring height. Not standard springs, but close to standard ride height I think.
Mag ons ons kenniskry met lekkerkry aanhoukry.

User avatar
davidvdm
Patrolman
Patrolman
Posts: 576
Joined: 13 Sep 2011 15:47
Full Name: David vd Merwe
Nickname: David - Hillbilly
Home Town: Carletonville
Current 4x4: 1997 2.7TD Nissan Sani Mk3 4x4 SFA (SAFANI)
Home Language: English/Afrikaans
Has thanked: 3 times
Been thanked: 33 times

Re: GQ Spring Length

Post by davidvdm »

Looks about right. Unloaded its 420, so 260 looks good.

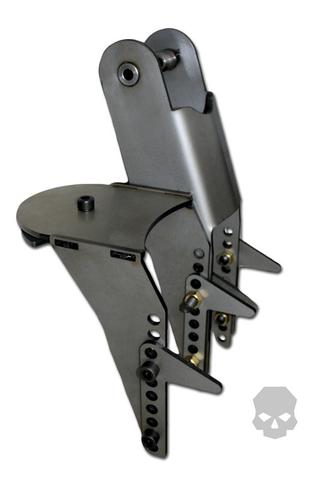

My other option is to make the top bucket adjustable on a rail type setup till I got it pinned down and then just weld when the height is sorted. But I don't like that setup much.

Something like this
David - Bfreesani
1997 Nissan Sani MK3 2.7TD - Hillbilly (SAFANI)
MQ C200 SFA
MQ H260 LSD Rear
MQ Transfer as second low range
5" Lift
33"x12.5x15" tires on 8.5J rims - Want 35's
DIY rock sliders
DIY Snorkel
Madman EMS

User avatar
davidvdm
Patrolman
Patrolman
Posts: 576
Joined: 13 Sep 2011 15:47
Full Name: David vd Merwe
Nickname: David - Hillbilly
Home Town: Carletonville
Current 4x4: 1997 2.7TD Nissan Sani Mk3 4x4 SFA (SAFANI)
Home Language: English/Afrikaans
Has thanked: 3 times
Been thanked: 33 times

Re: GQ Spring Length

Post by davidvdm »

No other GQ guys able to give me a compressed coil figure??.

I decided to go ahead with my radias arm build, and was hoping somebody could give me some definite figure by now. I have been busy since Friday, and now at a critical point to fit coil buckets to the chassis. Without the measurement, I kinda now have to wing it, and hope I don't need to cut the bucket back off, and adjust.
David - Bfreesani
1997 Nissan Sani MK3 2.7TD - Hillbilly (SAFANI)
MQ C200 SFA
MQ H260 LSD Rear
MQ Transfer as second low range
5" Lift
33"x12.5x15" tires on 8.5J rims - Want 35's
DIY rock sliders
DIY Snorkel
Madman EMS

User avatar
Kagiso II
Patrolman 1000+
Patrolman 1000+
Posts: 3761
Joined: 10 Jun 2009 16:58
Full Name: Mac Mc Menamin
Nickname: Oom Mac [Uncle Mac] [Uncle] [Oompie] Kagiso
Home Town: BrentwoodPark, Benoni
Current 4x4: 1982 Datsun Safari 2,8 aka LOBO; [1,300,000 Km verby !]
'99 PATROL 4,2 diesel.
2012 Jimny [SWAMBO se Kantoor-toe]
Home Language: AFRIKAANS
Location: Benoni and wherever the Outreach takes me.
Has thanked: 305 times
Been thanked: 135 times
Contact:

Re: GQ Spring Length

Post by Kagiso II »

watter measurement soek jy Davy ?? Ek het mos nou 'n GQ ge erf en hy is nog "ongemolesteerd" soos PC sê. Suspensie het bietjie gesaak oor jare maar Dirk se coils is dubbel die kilo's so jy behoort O K te wees // Hoe meet ek wat waar vir joui [jy kan maar bel ook jy het mos my Nr]
Don't bring God down to your level of faith ... bring your faith up to His level!

User avatar
davidvdm
Patrolman
Patrolman
Posts: 576
Joined: 13 Sep 2011 15:47
Full Name: David vd Merwe
Nickname: David - Hillbilly
Home Town: Carletonville
Current 4x4: 1997 2.7TD Nissan Sani Mk3 4x4 SFA (SAFANI)
Home Language: English/Afrikaans
Has thanked: 3 times
Been thanked: 33 times

Re: GQ Spring Length

Post by davidvdm »

Oom Mac, ek soek letterlik die mate van hoe hoog die spring staan met die Patrol se gewig op hom. Ek ken nou nie die Patrols nie, so ek weet nie of die bokant van die spring wegkruip binne a "bucket" nie.

More sweis ek maar op Pieter se afmeting die buckets vas, en prakseer a Panhard bar, dat ek kan sien hoe die Sani gaan staan. Ons sit nou vir die hele dag sonder krag na daar weer kabels gesteel is. Krag het netnou eers weer aangekom, nou is ek nog a dag agter. Ek moet nou wikkel, volgende week ry ons.
David - Bfreesani
1997 Nissan Sani MK3 2.7TD - Hillbilly (SAFANI)
MQ C200 SFA
MQ H260 LSD Rear
MQ Transfer as second low range
5" Lift
33"x12.5x15" tires on 8.5J rims - Want 35's
DIY rock sliders
DIY Snorkel
Madman EMS
